Tablet Press Machine Mini Desktop Tdp 5 Single Punch Diy Press Tableting Machine
Tax included.
- Explanation of shipping method:

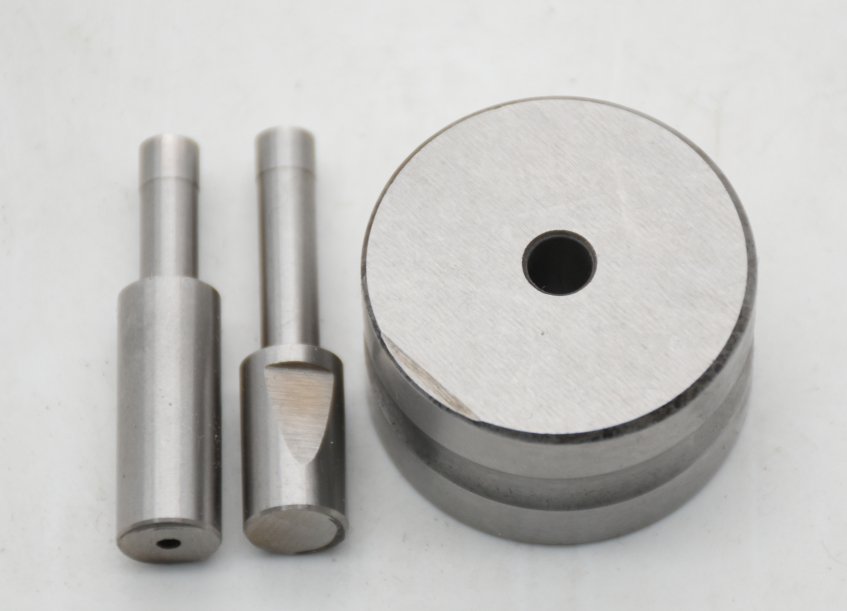

By default, the machine will be divided into two parts and shipped by express. The consignee needs to install it after receiving the goods. You can contact us to get the assembly video. - Default Mold (ø6mm x1~6mm/ø0.23" x0.04~0.23")
- Tablet Press Machine pressing pill diameter ø4-25mm, The filling depth can be adjusted according to the needs of the product to achieve the ideal tablet thickness.
- The machine is suitable for most dry powder tablets, milk tablets, effervescent tablets and other products

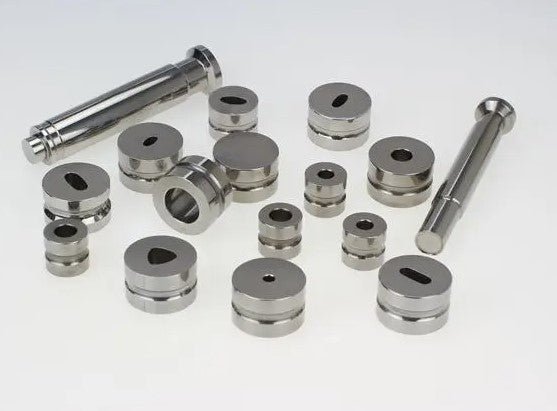

- If you need customized molds of tablet press machine, please contact Email: info@lagopus.cc OR Whatsapp: +86 15382582660
Tablet Press Machine Product Manual
Model |
TDP-1.5T |
TDP-5T |
TDP-6T |
Max.Pressure |
15KN |
50KN |
60KN |
Max.Tablet Diameter |
4-12mm/0.15”-0.47” |
4-20mm/0.15”-0.8” |
4-25mm/0.15”-0.98” |
Max.Tablet Thickness |
6mm/0.24” |
6-8mm/0.24”-0.31” |
|
Max.Filling Depth |
12mm/0.47” |
16mm/0.63” |
|
Production Capacity |
4500-6000pcs/hour |
3000-4000pcs/hour |
|
Weight |
50kg |
130kg |
145kg |
Dimension |
700*370*800mm |
700*400*800mm |
700*500*900mm |
Motor Speed |
1400r/min |
||
Motor Power |
370w |
750w |
1100w |
